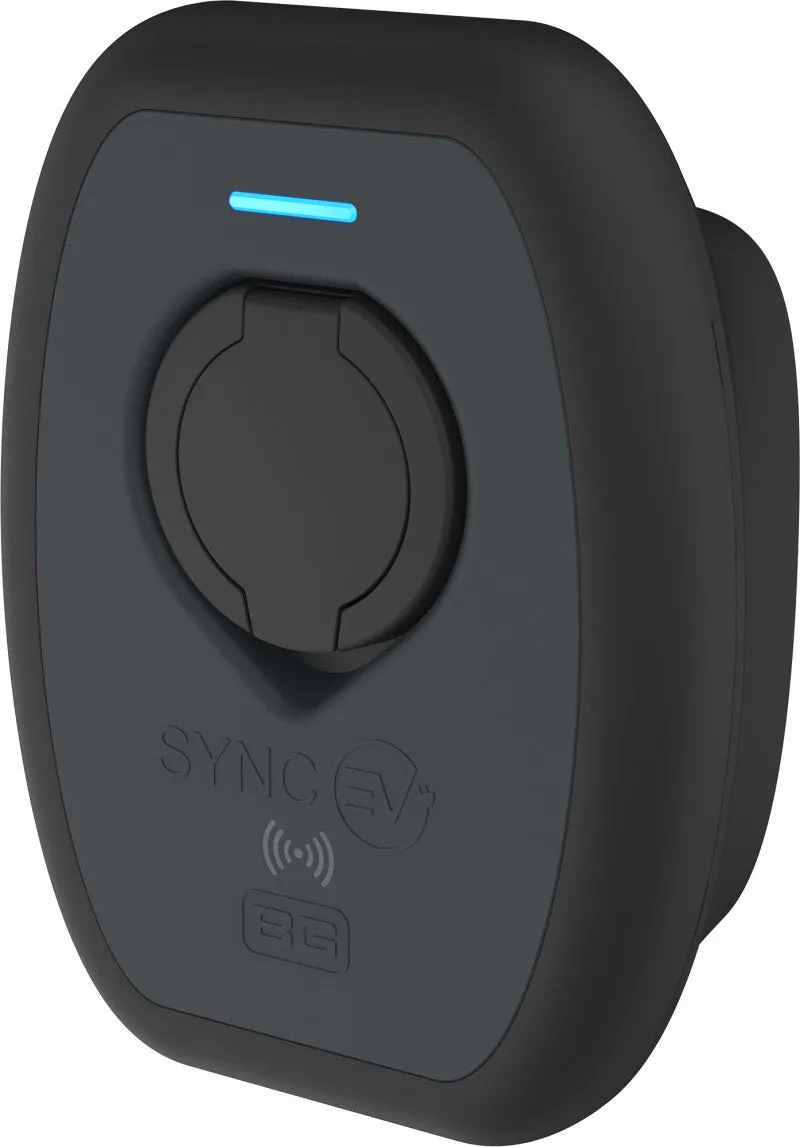

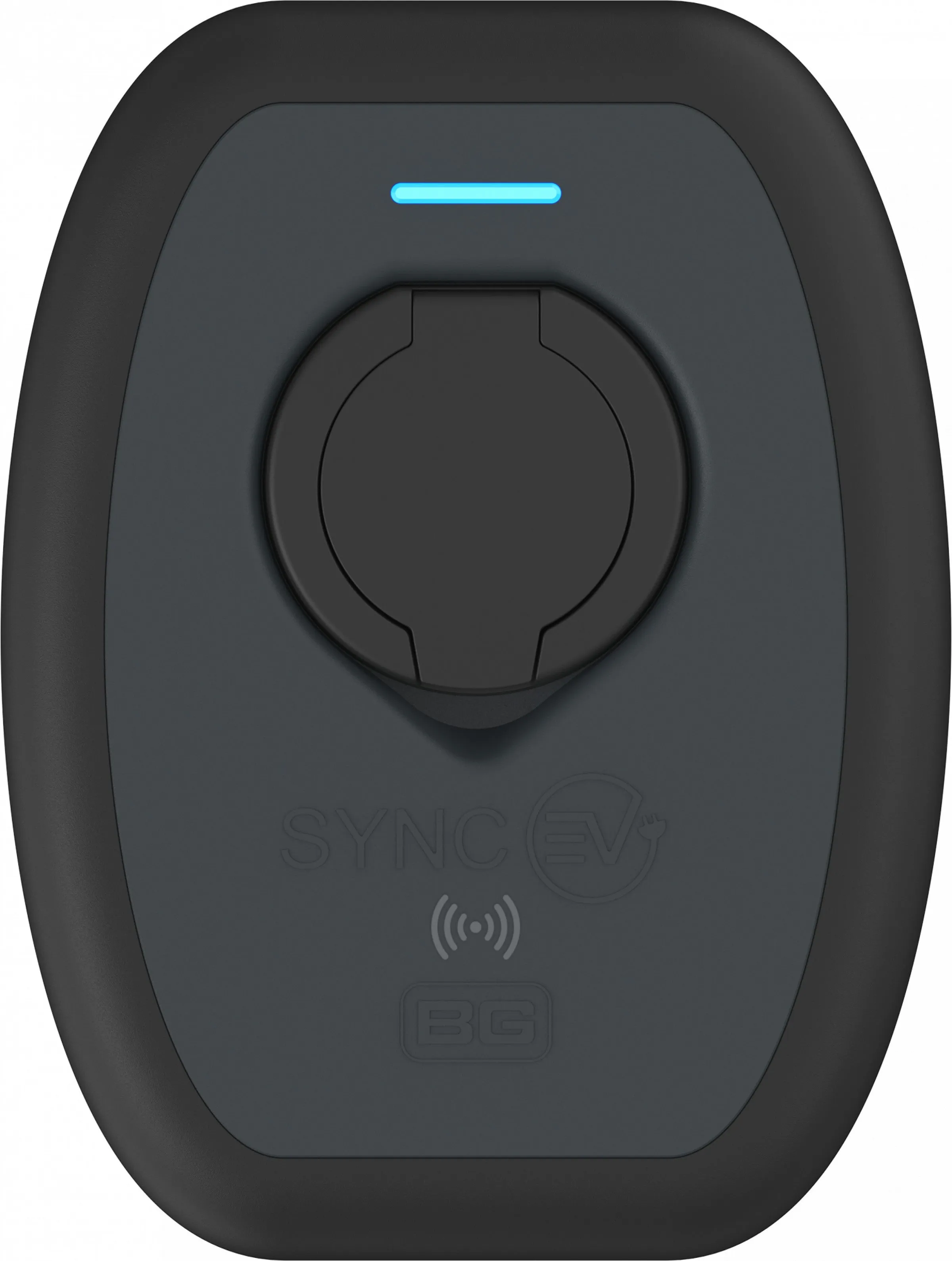

SyncEV BG EVS7GGR Domestic 7.4kW EV Car Charger Socket WiFi GSM RFID - Black

SyncEV BG 7.4kW socket (with auto-lock) wall charger with WiFi, 4G GSM, RFID and Smart! functionality. Offering installers quick and easy installation, with UK based technical support and backed by a 3-year warranty. Dekra certified.

Features:

• RFID functionality enables use of your charger without using the app - simply swipe your card to start or stop charging
• Wifi connectivity with 4G GSM - free lifetime software updates over-the-air
• Full Smart! functionality - OCPP 1.6J connectivity
• Dynamic charging - up to 7.4 kW
• No earth rod required - integrated open PEN conductor protection
• Safe - integrated earth fault protection (RCD) PEN protection system

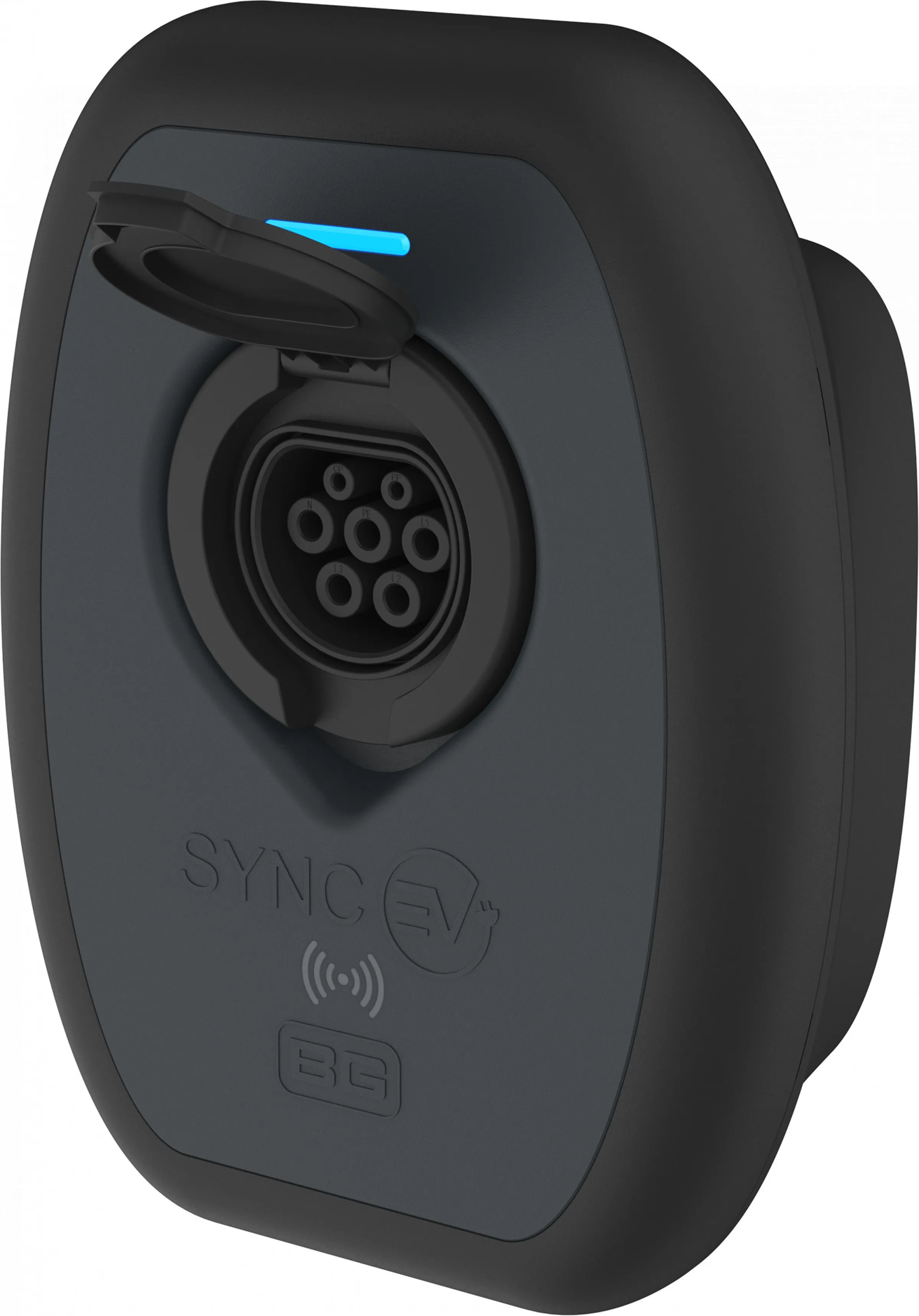

• Type 2 socket with auto-lock

Specifications:

• Type: Socket - Type 2 with auto-lock
• Communication: Wi-Fi, 4G GSM, RFID
• Dimensions: 297 (H) X 223 (W) X 121 (D) MM
• Electrical Class: Class 1, Housing Class 2
• Load Balancing: Yes, Optional Accessory
• IP Rating: IP55
• WI-FI: 2.4Ghz 802.11 b/g/n/e/i
• Bluetooth: Yes
• Standards & Approvals: IEC61851-1, IEC61439-7, IEC 62955, IC 61851-21-2, BS EN62196, EN301 511, EN 301 908-1/2/13, EN 301 489-3, EN 300 330, EMC COMPLIANT, CE, UKCA, DEKRA CERTIFIED
• Supplied Accessories: 5x base fixing caps, 5x assembly lid bolts, 1x blanking plug and 1x 25mm compression gland, user-side connector, cord grip and 2x cord grip assembly screws

Data Sheet:

Installation Guide:
