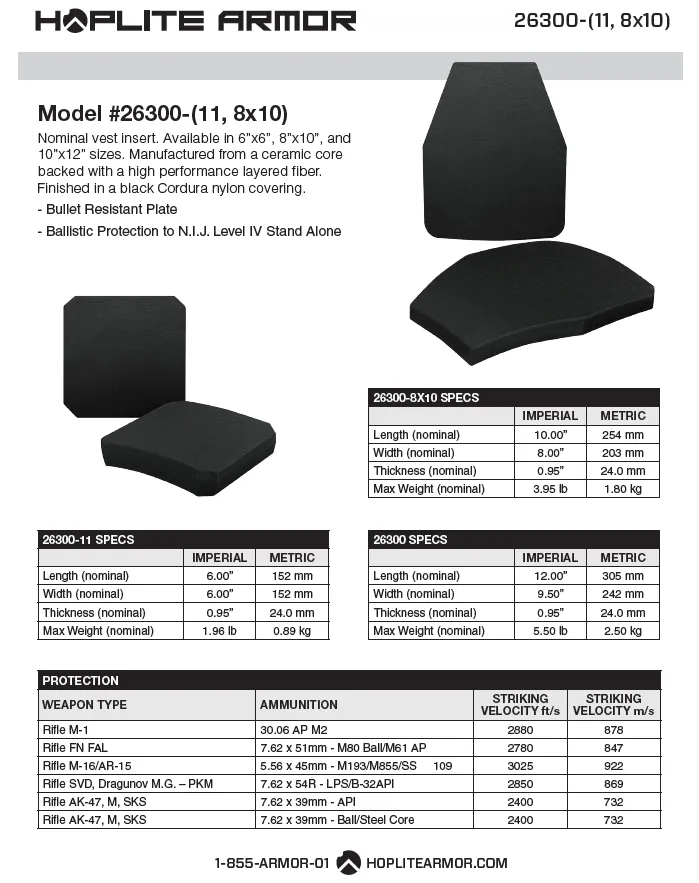

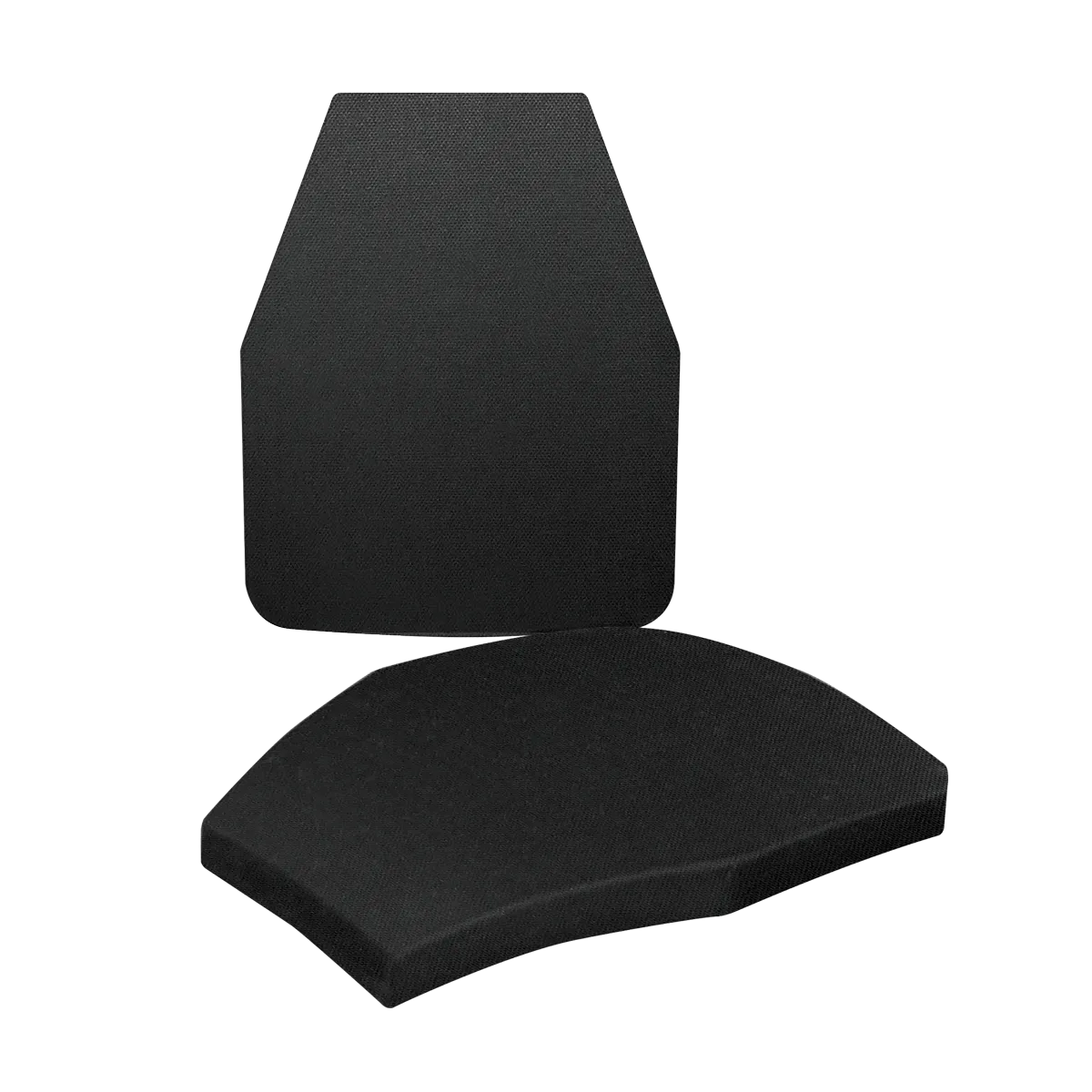

NIJ Certified Level IV Lightweight Swimmer Plates (26300)
~SOLD IN PAIRS~
The 26300 is a high end ballistic solution comprised of a Boron Carbide ceramic core, supported by a lightweight Dyneema HB212 backer plate.
The result is a lightweight, Triple Curve, NIJ 04 Level IV certified ballistic solution capable of defeating multiple hits of 5.56 (M193, M855, M855A1), 7.62x39 (FMJ, M1943, API), 7.62 x 51mm (M80 Ball/M61AP, M80A1) and is also capable of stopping 7.62 x 54R (LPS/B-32API) and 30.06 AP M2.
This is an extraordinary plate at a highly discounted price.
Fits all standard carriers. 8x10 small carrier. 10x12 medium carrier.
Some popular items/sizes may incur a 4-8 week lead time.
Specs:
- Weight: 4.8 - 6.5 lbs (nominal)
- Thickness: 1"
- Level: IV
Rounds Defeated:
| Weapon | Ammunition | STRIKING VELOCITY ft/s | STRIKING VELOCITY m/s |
| Rifle M-1 | 30.06 AP M2 | 2880 | 878 |
| Rifle FN FAL | 7.62x51mm - M80 Ball | 2780 | 847 |
| Rifle FN FAL | 7.62x51mm - M61 AP | 2780 | 847 |
| Rifle M-16/AR-15 | 5.56x45mm-M193/M855 | 3180 | 969 |
| Rifle SVD,Dragunov M.G.-PKM | 7.62x54R-LPS | 2850 | 869 |
| Rifle SVD,Dragunov M.G.-PKM | 7.62x54R-L/LPS/B-32 API | 2850 | 869 |
| Rifle AK-47,M,SKS | 7.62x39mm-API | 2400 | 732 |
| Rifle AK-47,M,SKS | 7.62x39mm-Ball/Steel Core | 2400 | 732 |
WHICH PLATE SIZE IS RIGHT FOR ME?
Personal preference is the single most important determining factor when choosing the right size armor for any individual. The wearer must feel comfortable in whatever system and size they choose in order to maximize the effectiveness of any armor system. That having been said, the prior standard for all plates was 10”x12”. Military specifications now include a full range of sizes from Small to Extra Large, however size Medium, 9.5”x12.5” is considered the ideal fit for the 95th percentile, meaning that Medium is designed to fit 95% of all military personnel.
In order to provide a more easily discernible size chart we focus on the height of an individual as the most important factor in determining proper fitment. See the outline below for a general height / plate size reference. Keep in mind, personal build, and personal preference are the most important factors.
If you purchase a set of plates that you feel is the wrong fit, call us for guidance and to get a quick and easy exchange.
SAPI Sizing Specifications
| Size | Dimensions | Weight | Height |
|---|---|---|---|
| Small | 8.5”x11.5” | 6.5 lbs | <5’5”-5’8” |
| Medium | 9.5”x12.50” | 7.5 lbs | 5‘8” - 6’ |
| Large | 10.25”x13.25” | 8.5 lbs | 6’1” - 6’4” |
| XL | 11”x14” | 9.75 lbs | >6’4” |
Swimmer Sizing Specifications
| Size | Dimensions | Weight | Height |
|---|---|---|---|
| Small | 8”x10” | 4.8 lbs | <5’5”-5’8” |
| Medium | 10”x12” | 6.5 lbs | >5’8” |
Weights and measurements are nominal
