As with all of CSF’s high-performance products, the same degree of engineering that has gone into the effectiveness of each product has gone into other aspects of its quality – from its hand-polished mirror finish to extensive testing and perfect “drop-in” fitment that the CSF name prides itself upon.

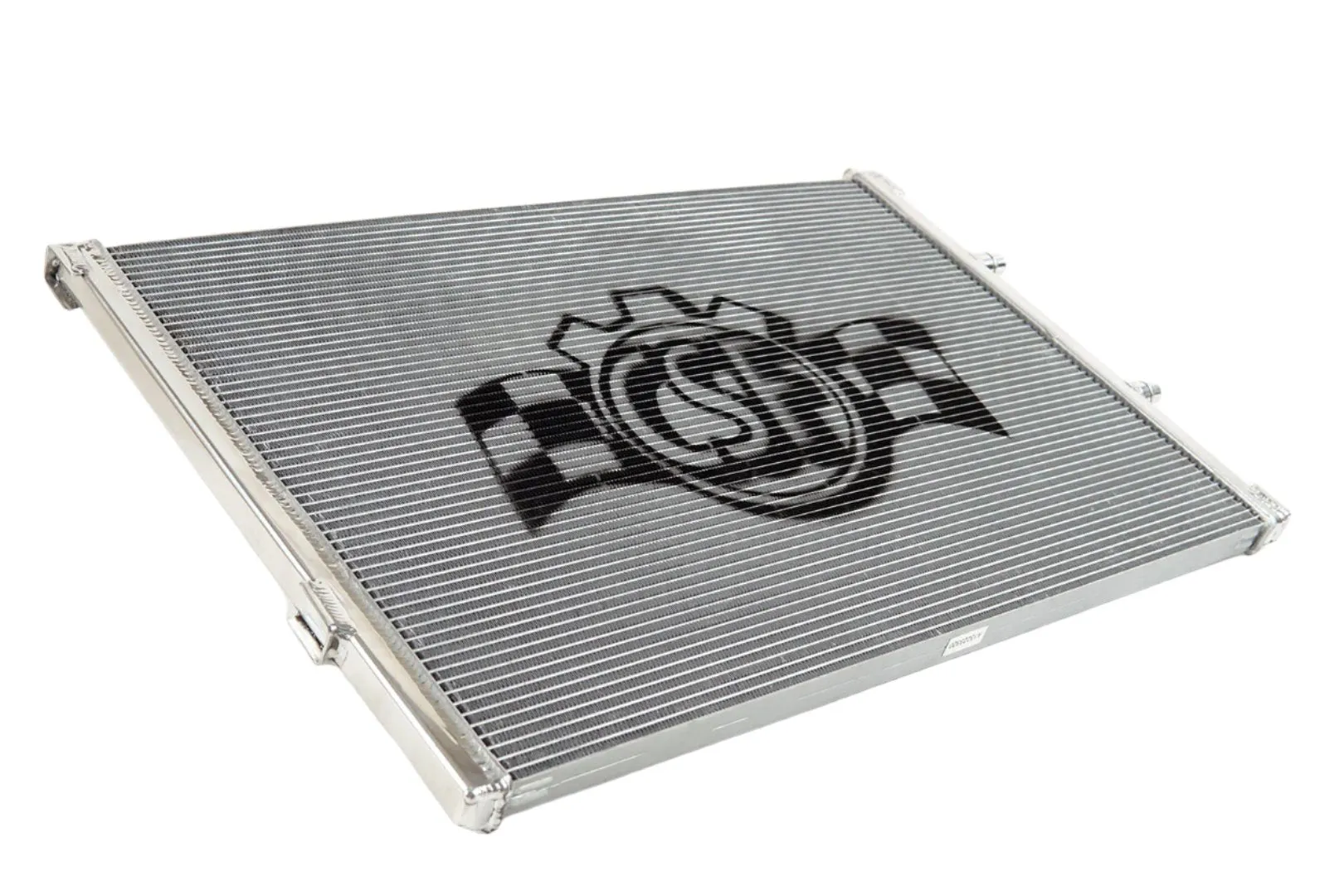

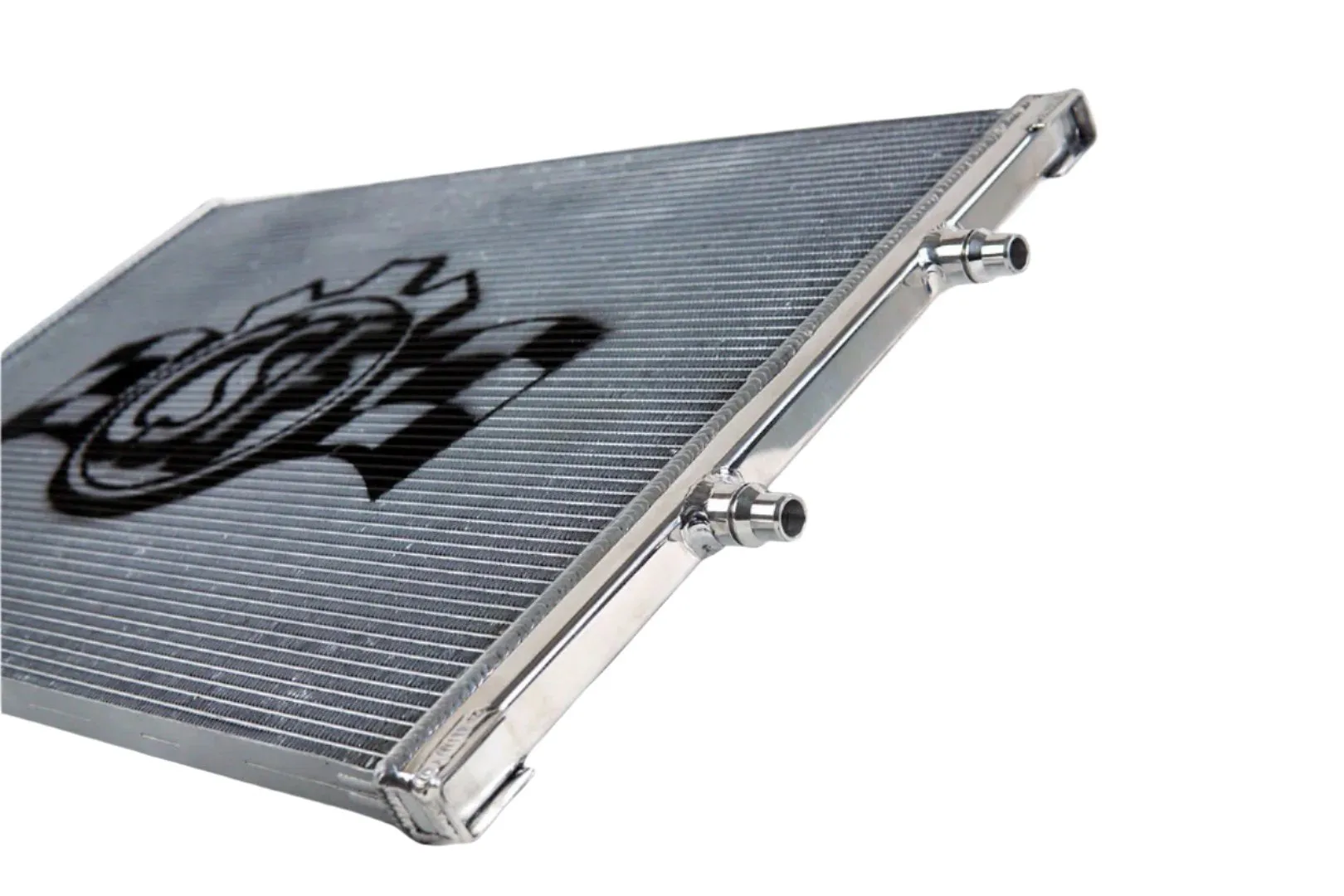

AMG Auxiliary Radiator Features (CSF# 8197):
- 1 Row, 23mm Super-High Efficiency Core w/ CSF’s Exclusive B-Tube Technology vs OEM 16mm Core
- 59 Rows vs OEM 42 Rows; Over 40% More Tubes Than The OEM Heat Exchanger, Resulting in a Core Efficiency With Over 300% Increase in Flow Area and Twice the Cooling Performance
- Ultra-Efficient, 5mm Tall Multi-Louvered Fins for Maximum Surface Area Contact
- 17.429cm² Flow Area vs OEM 5.748cm²

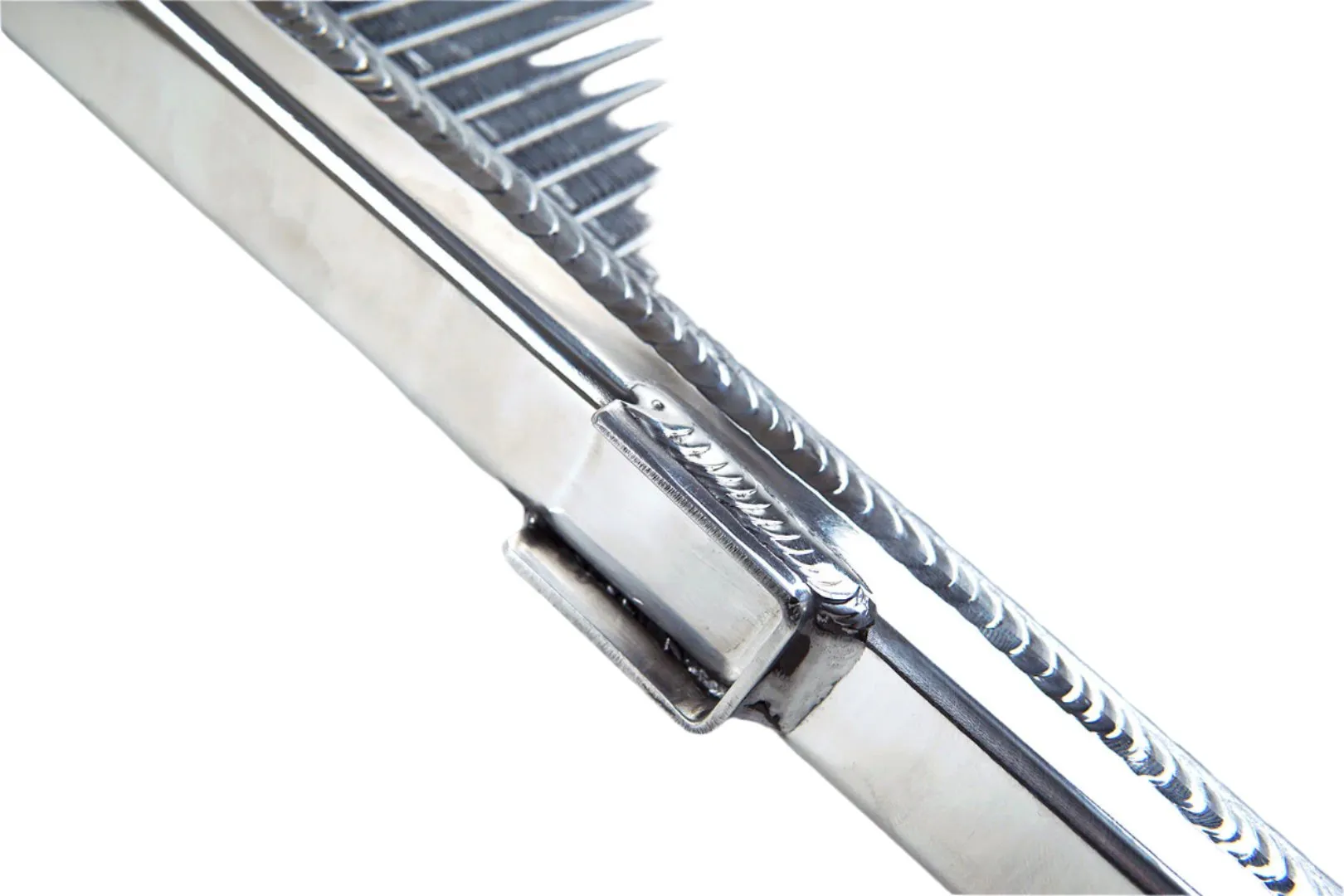

- 100% All-Aluminum TIG-Welded Construction

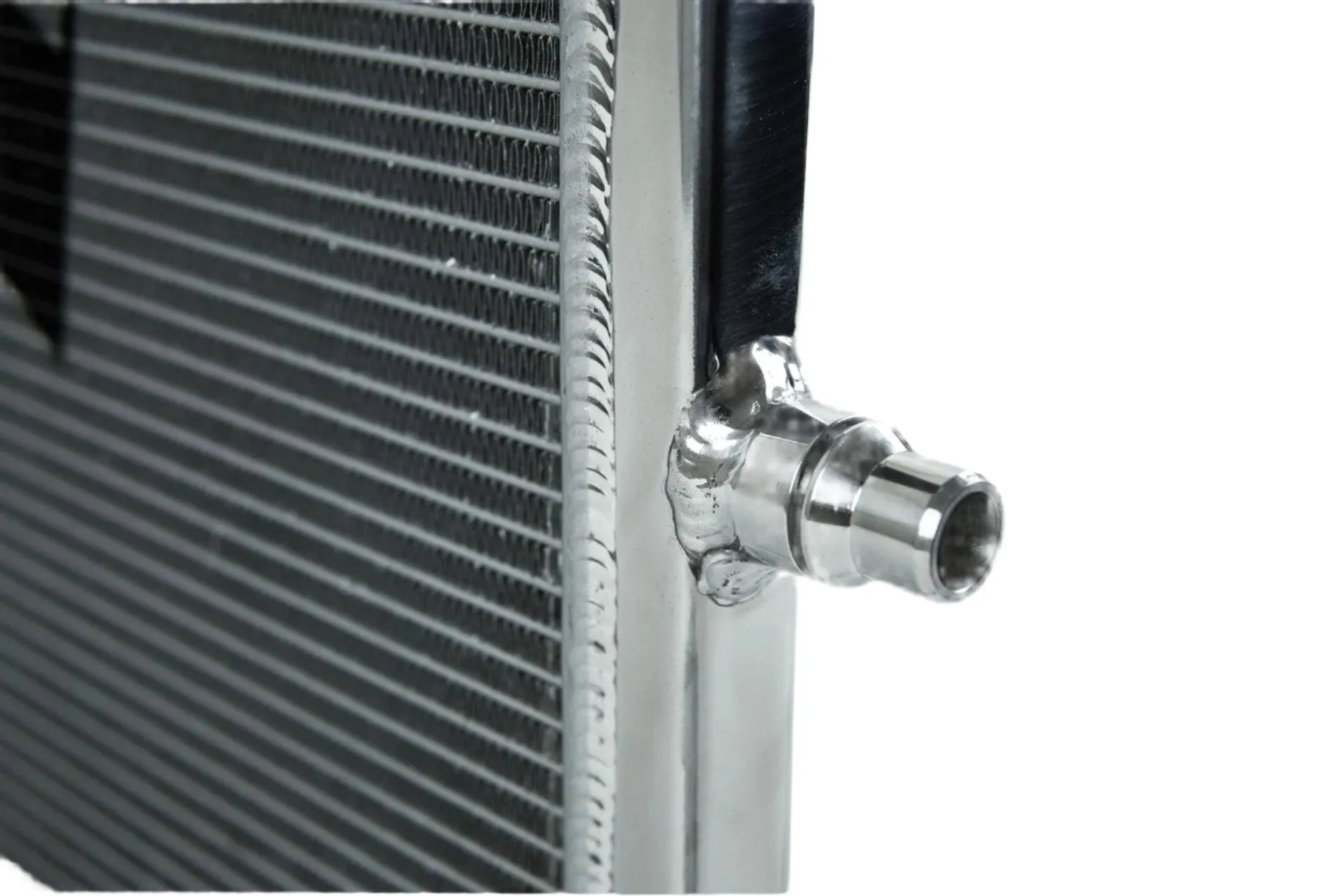

- CNC Machined Brackets and Fittings

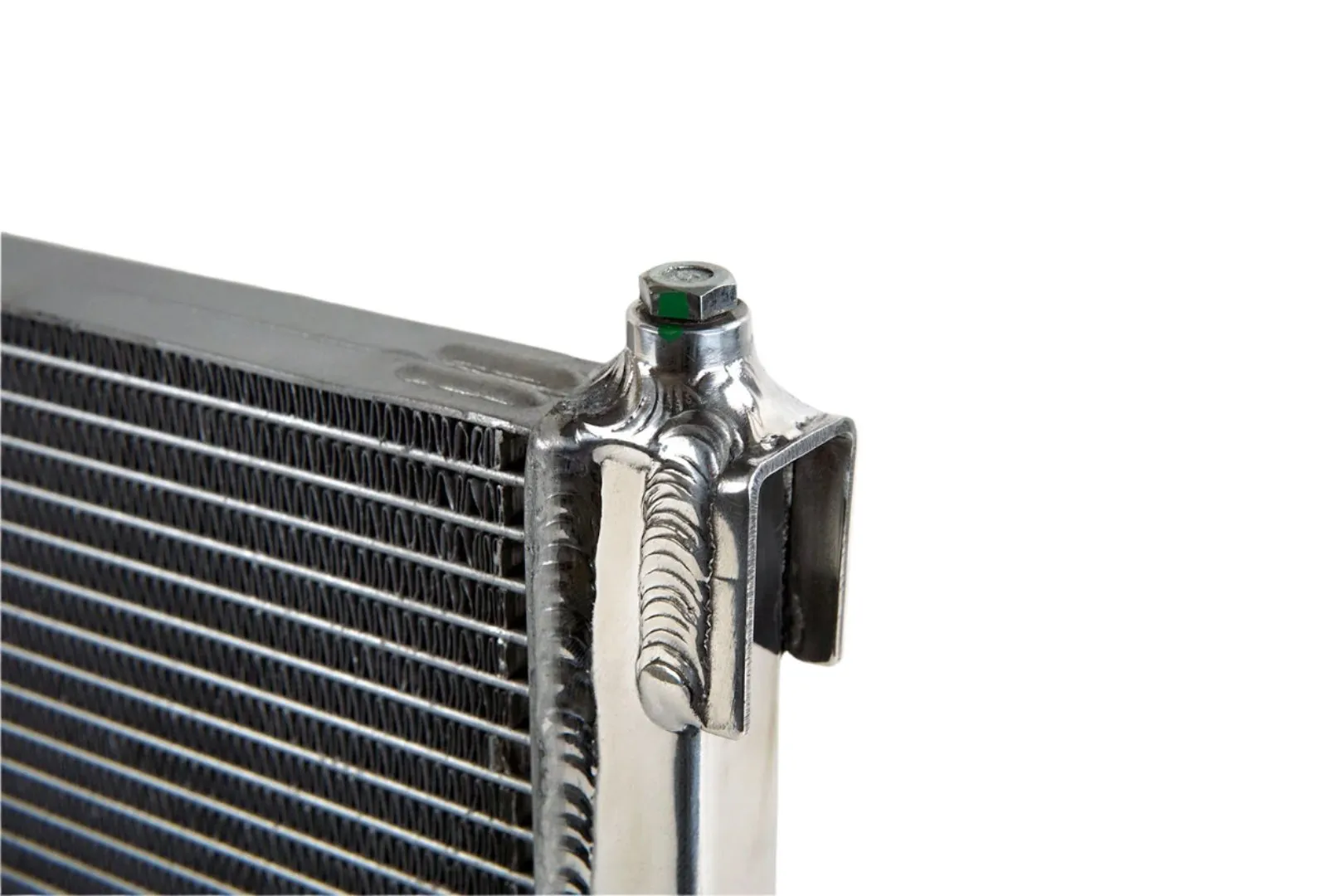

- Integrated All-Aluminum Race Style Bleeder Screw
- True “Drop-in Fit” Requires No Modifications to Install
- Replaces OEM Part#: 197-500-01-03
Fitment:
- 2012-2014 Mercedes Benz CLS 63 AMG 5.5L V8 (W218)
- 2014-2018 Mercedes Benz CLS 63 AMG S 5.5L V8 (W218)
- 2012-2016 Mercedes Benz E 63 AMG Sedan 5.5L V8 (W212)
- 2014-2016 Mercedes Benz E 63 AMG S Sedan 5.5L V8 (W212)
- 2012-2014 Mercedes Benz E 63 AMG Wagon 5.5L V8 (W212)
- 2014-2016 Mercedes Benz E 63 AMG S Wagon 5.5L V8 (W212)
- 2013-2019 Mercedes Benz SL 63 AMG Convertible 5.5L V8 (W231)
- 2013-2019 Mercedes Benz SL 65 AMG Convertible 5.5L V8 (W231)
- 2011-2015 Mercedes Benz SLS AMG Coupe 6.3L V8 (W197)
- 2012-2015 Mercedes Benz SLS AMG Convertible 6.3L V8 (W197)
